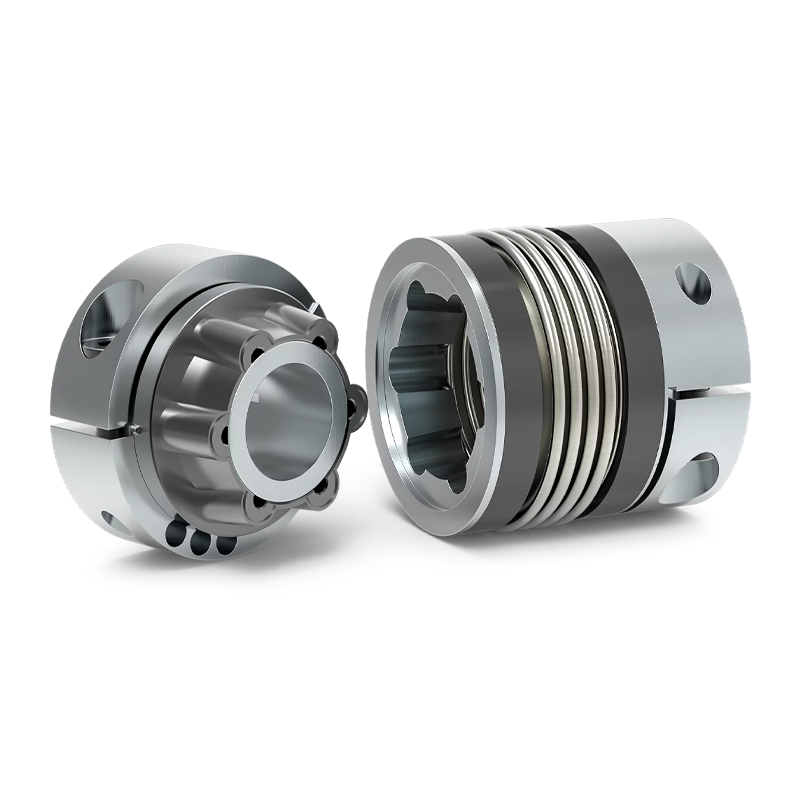

BK5-Bellows coupling with tapered press-fit connection
  • Easy installation and removal
  • Electrically and thermally isolating
  • Absolutely backlash free and torsionally stiff


DetailsParameter
  • Features

    • Easy installation and removal
    • Electrically and thermally isolating
    • Absolutely backlash free and torsionally stiff

    Temperature range
    • -30 °C to +100 °C (-22 °F to +212 °F)

    Design
    • Two clamping hubs, one of which has a tapered male projection for bind mate connection
    • Brief overloads of up to 1.5x the rated torque are acceptable


    Material
      • Bellows: high grade stainless steel
      • Hubs:
        • up to series 80 – aluminum
        • from series 150 – steel
      • Tapered male segment: high strength plastic


    • Service life
      • R+W bellows couplings are fatigue resistant and wear free for an infinite service life, as long as the technical limits are not exceeded


      Fit clearance
      • Overall shaft / hub clearance of 0.01 – 0.025 mm


      Special solutions
      • Various materials, tolerances, dimensions and performance ratings available for custom applications on request


      ATEX (Optional)
      • For use in hazardous zones 1/21 and 2/22, the metal bellows has been authorized under directive 94/9/EG and is available with certification


    BK5 15 BK5 30 BK5 60 BK5 80 BK5 150 BK5 300 BK5 500 BK5 800 BK5 1500
    Model BK5 15 60 BK5 15 67 BK5 30 71 BK5 30 79 BK5 60 85 BK5 60 95 BK5 80 94 BK5 80 106 BK5 150 95 BK5 150 107 BK5 300 114 BK5 300 128 BK5 500 136 BK5 500 149 BK5 800 150 BK5 1500 176
    Rated torque (Nm) 15 15 30 30 60 60 80 80 150 150 300 300 500 500 800 1,500
    Coupling length (mm) 60 67 71 79 85 95 94 106 95 107 114 128 136 149 150 176
    Bore diameter from Ø to Ø H7 (mm) 8-28 8-28 10-30 10-30 12-35 12-35 14-42 14-42 14-42 14-42 24-60 24-60 35-60 35-60 40-75 50-80
    Outside diameter (mm) 49 49 55 55 66 66 81 81 81 81 110 110 124 124 133 157
    Torsional stiffness (10³ Nm/rad) 10 8 20 14 38 28 65 43 88 55 225 175 255 245 400 650
